CWJ manufactures Waveguide to Coaxial Adapters covering a full frequency range for Rectangular Waveguides, with multiple flange and coaxial connector types and configurations available. For more information feel free to call us and discuss your needs with one of our sales engineers.

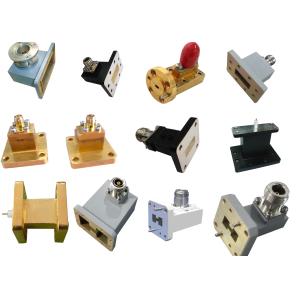

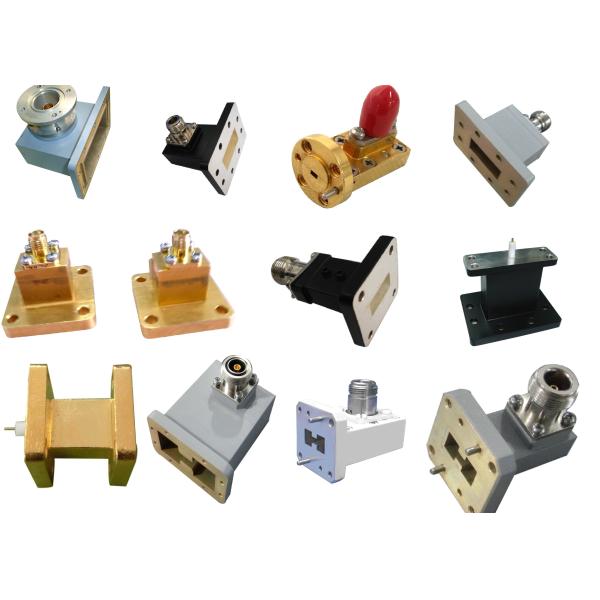

Waveguide to Coaxial Adapter - Right Angle Product Range
MODEL NO	FREQ RANGE	VSWR	DIMENSION (L*B*A)	WG TYPE (IEC/EIA)	FLANGE TYPE	CONNE CTOR	MAT ERIAL	PDF
	(GHz)	Max	(mm)
CWJ3WCANKPA	0.32-0.49	1.3	400*384*676	R3/WR2300	FDP/FDM	N, SMA, TNC	Al
CWJ4WCANKPA	0.35-0.53	1.3	380*359*626	R4/WR2100	FDP/FDM	N, SMA, TNC	Al
CWJ5WCANKPA	0.41-0.62	1.3	350*318*546	R5/WR1800	FDP/FDM	N, SMA, TNC	Al
CWJ6WCANKPA	0.49-0.75	1.3	300*280*470	R6/WR1500	FDP/FDM	N, SMA, TNC	Al
CWJ8WCANKPA	0.64-0.98	1.25	260*235*381	R8/WR1150	FDP/FDM	N, SMA, TNC	Al
CWJ9WCANKPA	0.75-1.15	1.25	231*212*336	R9/WR975	FDP/FDM	N, SMA, TNC	Al
CWJ12WCANKPA	0.96-1.46	1.25	187*185*166	R12/WR770	FDP/FDM	N, SMA, TNC	Al
CWJ14WCANKPA	1.13-1.73	1.25	138*220*150	R14/WR650	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ18WCANKPA	1.45-2.20	1.25	120*185*120	R18/WR510	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ22WCANKPA	1.72-2.61	1.25	106*161*100	R22/WR430	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ26WCANKPA	2.17-3.30	1.25	95*138*85	R26/WR340	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ32WCANKPA	2.60-3.95	1.25	76*114*72	R32/WR284	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ40WCANKPA	3.22-4.90	1.25	70*98*65	R40/WR229	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ48WCANKPA	3.94-5.99	1.25	63*89*54	R48/WR187	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ58WCANKPA	4.64-7.05	1.25	62*81*50	R58/WR159	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ70WCANKPC	5.38-8.17	1.25	49*68*60	R70/WR137	FDP/FDM	N, SMA, TNC	Al/Cu
CWJ84WCANKPC	6.57-9.99	1.25	48*48*40	R84/WR112	FBP/FBE/FBM	N, SMA, TNC	Al/Cu
CWJ100WCASKPC	8.20-12.50	1.25	41*41*38	R100/WR90	FBP/FBE/FBM	N, SMA, TNC	Al/Cu
CWJ120WCASKPC	9.84-15.0	1.25	38*38*30	R120/WR75	FBP/FBM/FBE	N, SMA, TNC	Al/Cu
CWJ140WCASKPC	11.9-18.0	1.25	33*33*27	R140/WR62	FBP/FBM/FBE	N, SMA, TNC	Al/Cu
CWJ180WCASKPC	14.5-22.0	1.25	30*30*27	R180/WR51	FBP/FBE/FBM	SMA, 2.92mm, 2.4mm	Al/Cu
CWJ220WCASKPC	17.6-26.7	1.4	22*22*25	R220/WR42	FBP/FBE/FBM	SMA, 2.92mm, 2.4mm	Al/Cu
CWJ260WCASKPC	21.7-33.0	1.5	21*21*27	R260/WR34	FBP/FBE/FBM	SMA, 2.92mm, 2.4mm	Al/Cu
CWJ320WCA2.92KPC	26.3-40.0	1.25	19*19*25	R320/WR28	FBP/FBE/FBM	SMA, 2.92mm, 2.4mm	Al/Cu
CWJ400WCA2.4KPC	33-50	1.6	19*19*25	R400/WR22	FUGP	2.4mm	Cu
CWJ620WCA1.85KPC	50-65	1.8	30*19.1	R620/WR15	FUGP	1.85mm	Cu
CWJ740WCA1.85KPC	55-65	1.8	28*27.65*19.1	R740/WR12	FUGP	1.85mm	Cu

Xi’an Chuangweijia Communication Technology Co., Ltd. focuses on the development of professional microwave technologies such as microwave communication and radar, microwave antennas, microwave measurement, microwave waveguide components, microwave cable assemblies, and the manufacturing, production and sales of microwave products. In addition to independent research and development, it also Undertake microwave customized research and development, microwave processing with drawings, and microwave processing with samples.
The company is equipped with complete microwave testing equipment and CNC machining equipment, which can be mass-produced or customized for use in military and civilian microwave systems such as communications, navigation, electronic warfare, radar, satellite, radio and television, microwave energy technology, and medical microwave equipment. Passive devices, components and subsystems.
Currently, microwave devices and antennas are developed and produced, with operating frequencies ranging from 10KHz to 110GHz, covering almost all common microwave frequency bands. The main products are waveguide or ridge waveguide couplers, various loads, waveguide coaxial converters, attenuators, rotary joints, duplexers, power splitters/combiners, circulators/isolators, switches, and various connected waveguides , Various types of antennas and components and systems composed of these devices.
Chuangweijia is willing to use advanced design, precise processing, excellent performance and perfect service to enable you to spread your wings and create the future in the field of microwave integration or application.
